Aluminum Garden Fences

JZZ1 supplies aluminum garden fences and fence panels for villas, residential boundaries, landscape areas, and perimeter applications. Share the layout, height, post direction, fixing condition, and matching gate opening for a drawing-based quotation.

Villa and garden boundariesVertical-picket systemsDrawing-based layoutMatching gate route
Decorative black aluminum fence around a residential front garden

Garden fence directions shown here

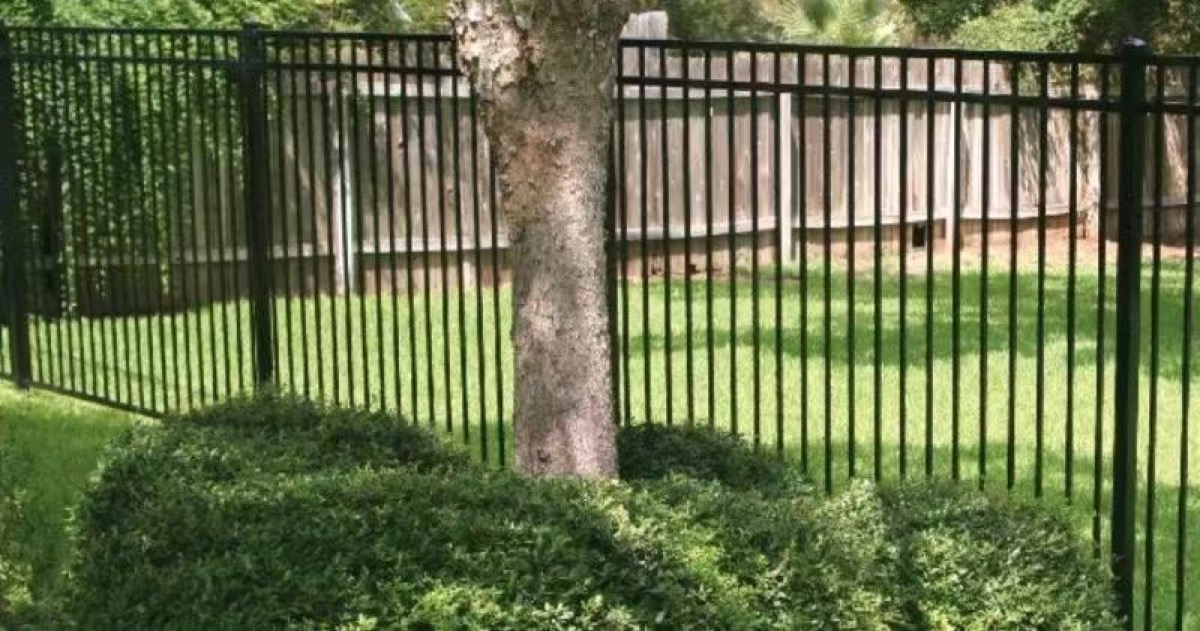

  • Open vertical-picket garden fences
  • Spear-top and decorative boundary panels
  • Low villa and front-garden fencing

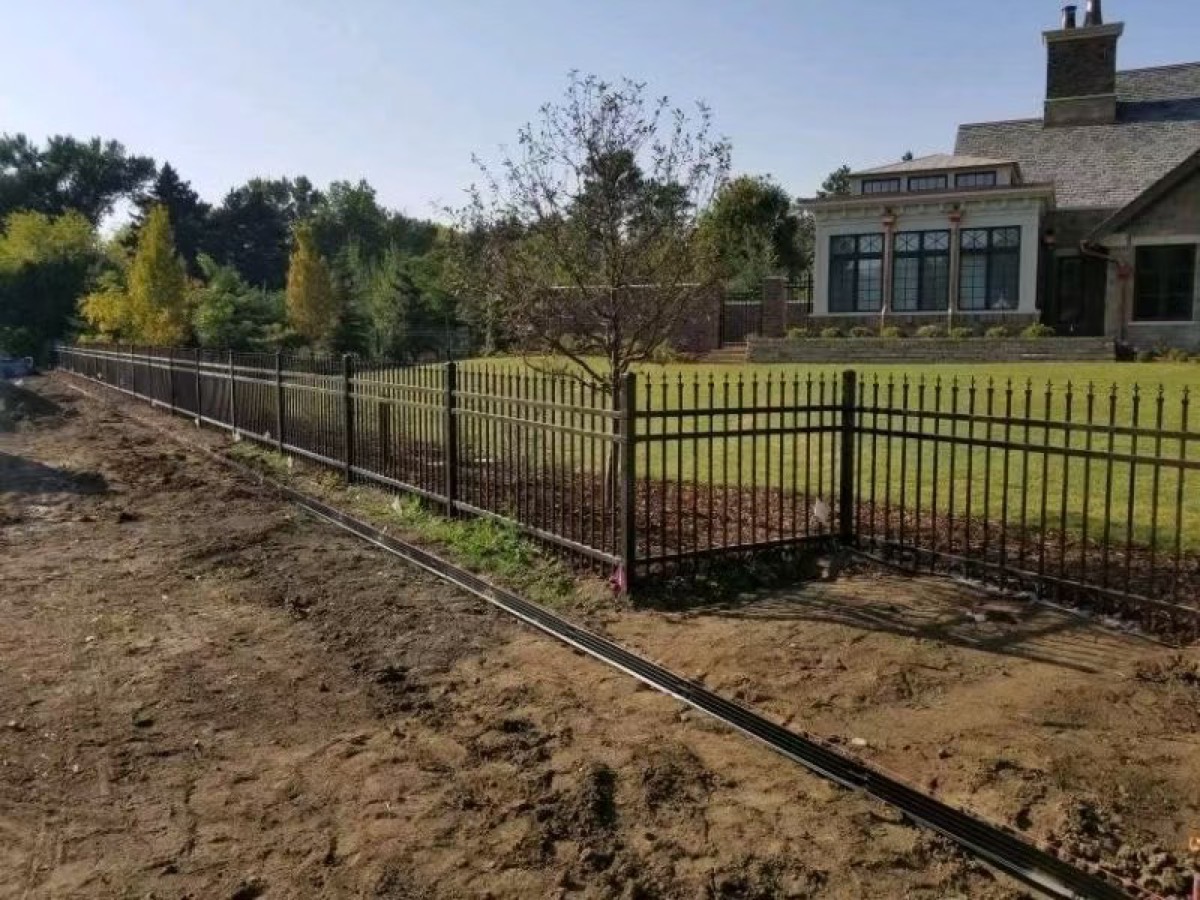

  • Full-height residential perimeter fencing
  • Fence panels coordinated with pedestrian gates

Layout items to confirm

  • Straight runs, corners, and level changes
  • Required height and panel split
  • Post positions and spacing direction
  • Ground, slab, or project-specific fixing condition
  • Gate opening and approach clearance
★ ISO 9001:2015 Certified · CNAS C104-M Accredited

Certified Metal Guardrails & Fencing Manufacturing Quality

JZZ1 perimeter fencing, villa garden boundary panels, and metal guardrail systems are manufactured under certified ISO 9001:2015 / GB/T 19001-2016 quality management systems (Certificate No: 10425Q00700R0S) accredited by CNAS. Finished with genuine AkzoNobel Interpon powder coatings for over 1,500 hours salt spray anti-rust performance.

View Guardrail Certificate →

Certified Manufacturing Standards

  • Quality Registration: Certificate No. 10425Q00700R0S (Valid to 06 May 2028)
  • Scope: Production of Metal Guardrails, Fences, and Metal Doors
  • Accreditation Body: China National Accreditation Service (CNAS C104-M)
  • Dual Anti-Rust Process: Full-immersion primer E-coat + AkzoNobel topcoat
  • Welding Quality: Robot-welded joints without open pinholes or burn-through

North America & Oceania Sourcing Options

  • Blade Fence Slat Profiles: 65×16mm and 50×10mm vertical or horizontal
  • Slat Privacy Screening: 16×65mm, 16×100mm, 16×120mm, 16×150mm slats
  • Welded Residential Picket: 5/8"×5/8" pickets (18-ga) with 1"×1" rails (16-ga)
  • Welded Commercial Picket: 3/4"×3/4" pickets (18-ga) with 1.5"×1.5" rails (16-ga)
  • Top Styles: 2-rail / 3-rail Flat Top (FB), Spear Top, and Extended Top (EB)

Garden Fence Engineering Dimensions & Panel Schedules

Standard and custom dimension schedules for villa, residential perimeter, and commercial landscape projects:

System Style Standard Panel Length Standard Panel Height Picket / Slat Dimensions Rail & Frame Size Assembly Format
Blade Fence System 1800mm / 2400mm 1200mm / 1500mm / 1800mm 65×16mm or 50×10mm aerofoil blades 50×50mm post & concealed U-channel Preassembled welded or DIY modular
Slat Privacy Fence 1800mm / 2000mm / 2400mm 1500mm / 1800mm / 2000mm 16×65mm / 16×100mm / 16×150mm 31×50-F perimeter frame Zero-gap or 10mm–20mm spacing
Welded Residential Picket 72" / 94" (1830mm / 2390mm) 46" / 48" / 58" / 70" (1170–1780mm) 5/8"×5/8" (16×16mm) 18-gauge picket 1"×1" (25×25mm) 16-gauge rail Factory automated welded panels
Welded Commercial Heavy 94" (2390mm) 46" / 58" / 70" / 94" (1170–2390mm) 3/4"×3/4" (19×19mm) 18-gauge picket 1.5"×1.5" (38×38mm) 16-gauge rail Heavy-duty security perimeter

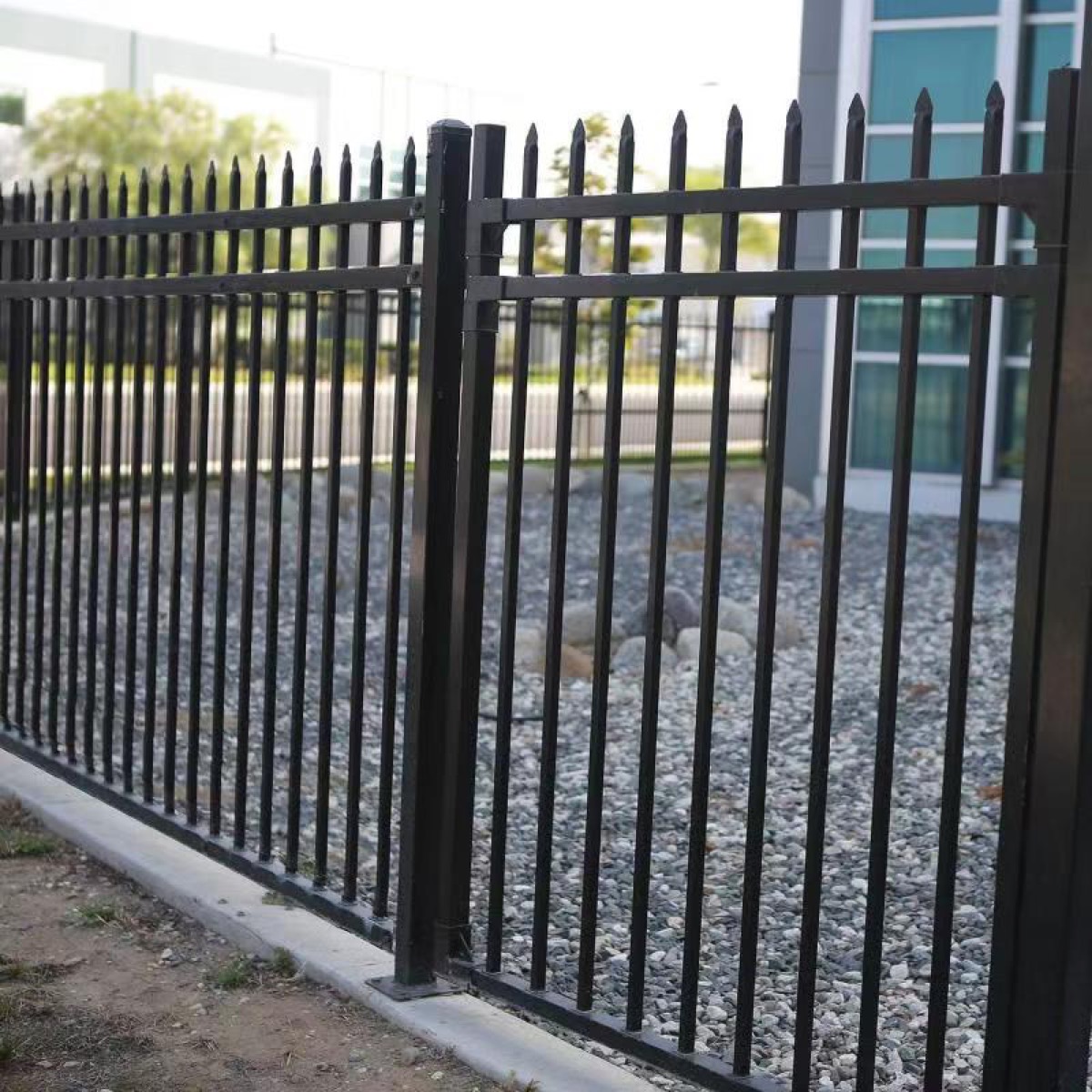

Posts, spacing, corners, and ground conditions

A fence quotation should start with a marked layout rather than a single panel size. The drawing should identify total runs, corners, changes in ground level, gate openings, and the surface receiving each post. Final panel splits and fixing details are reviewed against that input.

Coordinate a matching garden gate

Where the fence includes a pedestrian or access opening, share the clear opening width, required height, swing direction, and nearby post positions. The gate route can then align the visible bar spacing and finish direction with the fence.

View Aluminum Garden Gates · Return to Outdoor Aluminum Systems

Finish and color confirmation

Use a finish code, approved sample, or clear buyer specification to confirm the final appearance. Available process and color direction must be checked for the actual order; this page does not publish an unverified coating life, salt-spray result, or warranty period.

Architectural Fence Models & Engineering Diagrams

Explore our engineered perimeter, privacy slat, and louvered fence configurations fabricated from primary 6063-T5 aluminum extrusions with AkzoNobel powder coating and PPG cathodic E-coat protection:

Architectural Slat Privacy Screening

Horizontal interlocking and slotted slat profiles (16×65mm up to 16×150mm) with concealed 31×50-F perimeter frames for complete privacy.

JZZ1 Architectural Aluminum Slat Privacy Fence System Diagram

Engineered Louver & Pergola Screening

Elliptical and angled louver blades (120×18mm, 80×10mm) engineered for optimal airflow, sun shading, and architectural screening.

JZZ1 Architectural Louver Fence and Pergola System Diagram

Residential 72" Aluminum Fence Panels (RA Series)

5/8" (16×16mm) pickets with 1" U-channel rails. Models RA1 to RA4 with Flat Top, Spear Top, and Extended Top in 48", 54", 58.5", and 60" heights.

JZZ1 Residential Aluminum Fence RA Series Models RA1 RA2 RA3 RA4

Commercial 72" Heavy-Duty Fence Panels (CA Series)

3/4" (19×19mm) pickets with 1-1/4" U-channel rails. Models CA1 to CA4 designed for commercial perimeters, municipal parks, and schools.

JZZ1 Commercial Aluminum Fence CA Series Models CA1 CA2 CA3 CA4
Official Engineering Resources

Download Architectural Fences, Railings & Gates Catalogs

Directly access our 2026 architectural CAD profiles, panel dimension schedules, AkzoNobel powder coating finishes, and North American / Australian standard perimeter fencing specifications in print-ready PDF formats.

Download Architectural Catalog (PDF, 1.8 MB) Download Perimeter Fence Guide (PDF, 5.9 MB)

Real product and application references

Installed images are shown as supplied application references unless project ownership is separately documented.

What to send for a fence quotation
